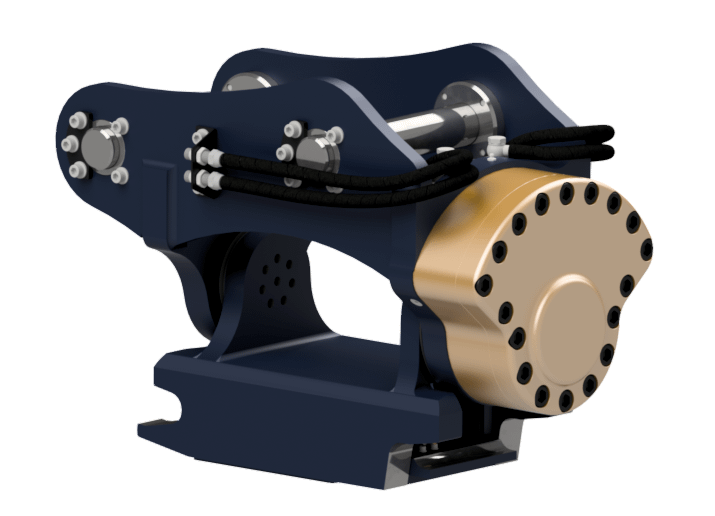

ROTYX T-S
Tilting hitch

Excavator weight recommendation 9-13 tn

Standard quick hitch (bottom mount) S45
Direct Fit / S45 (top mount)
Weight 306 kg - incl. fastening pins (Direct Fit + S45)
Max. bucket width 1500 mm

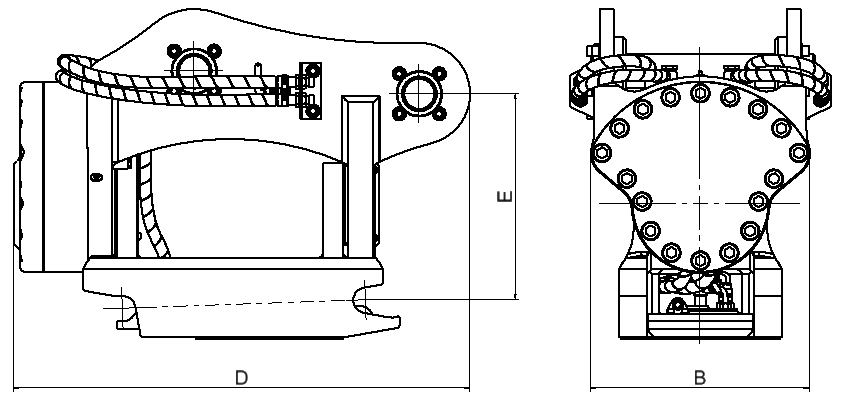

Structural height (E) 365 mm (Direct Fit)
Structural width (B) 388 mm
Length (D) 807mm

Tilting moment 23 kNm
Tilting angle 2 x 50 degrees
Max hydraulic pressure 25 MPa
Max return line pressure 21 MPa
Suositeltu hydraulivirtaus 15 l/min

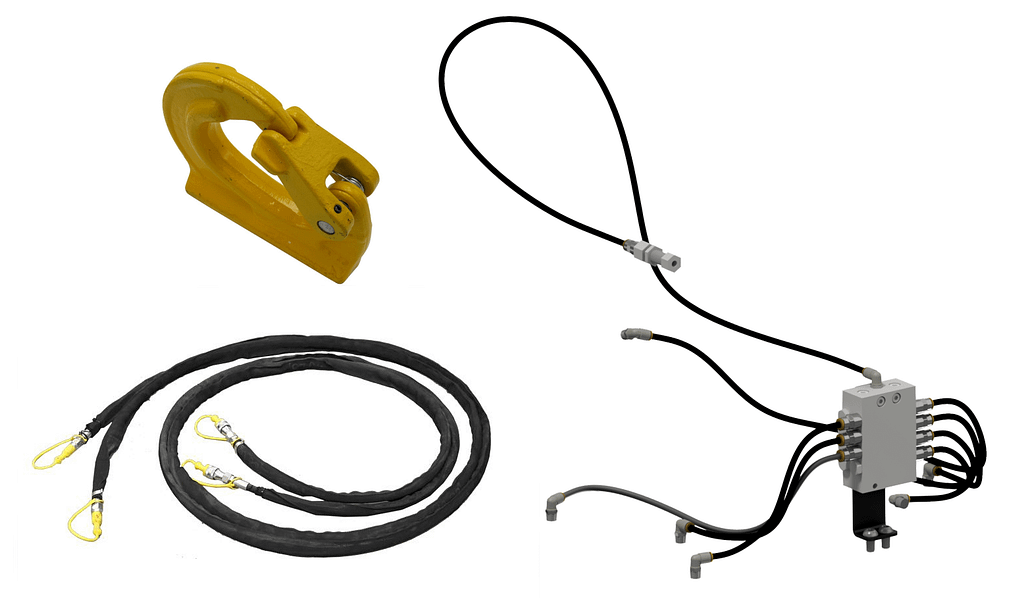

Accessories

Central lubrication system
Lifting hook
Hand-rest for L8 joysticks
Wheel & Track control
Hose assembly kit
